High resolution PAL/NTSC 70m IR distance CCD or CMOS CCTV Surveillance Camera with OSD AS-848 manufacturer from China Hongkong Angels Security Electric Co.,Ltd.

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: AS-848

Delivery Date: 7-30 days

TV system: PAL/NTSC

Minimum illumination: 0 lux (IR on)

Backlight compensation: auto

IR distance: 70 meters

Means of Transport: Ocean,Air

Sensor: 1/4"color CCD,1/3"color CCD...

Scanning system: 2:1 interlace

Day/night: auto

Infrared LED: 60pcs IR LED

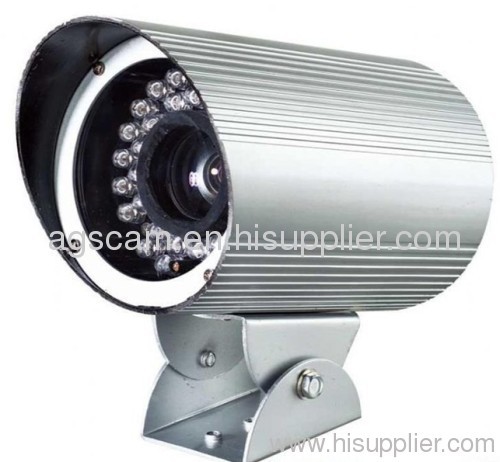

High resolution PAL/NTSC 70m IR distance CCD or CMOS CCTV Surveillance Camera with OSD

Specifications:

Image Sensor: Sharp or Sony 1/4"color CCD,1/3"color CCD, CMOS

TV system: PAL/NTSC

Scanning system: 2:1 interlace

Synchronize system: internal

Minimum illumination: 0 lux (IR on)

S/N ratio: ≥48dB

Video output: 1.0Vp-p, 75II composite, BNC x 1

Gamma ratio: ≥0.45

Focal length: 25mm manual lens

Viewing angle: Vertical: 92°/53°

Zoom ratio: fix

Control mode: fix

Day/night: auto

Backlight compensation: auto

White balance: auto

Gamma characteristic: ≥0.15

Electronic shutter:PAL: 1/50 to 1/100,000 seconds

NTSC: 1/60 to 1/100,000 seconds

Infrared LED: Ø8, 60pcs IR LED

IR distance: 70 meters

Infrared spectrum: 850nm

Operating temperature: -10 to +50°C

Storage temperature : -40 to +60°C

Vandal-proof casing: IP66

Input voltage/current: DC 12V/500mA

Serial products:

AS-8483	Sharp 1/4 CCD,420TVL,0LUX(With IR On), 60pcs F8 IR Lights, 70mdistance, 25mm manual Lens (Without Bracket)
AS-8484	CMOS,420TVL,0LUX(With IR On), 60pcs F8 IR Lights, 70m distance,25mm manual Lens (Without Bracket)
AS-8485	Sony1/4 CCD,420TVL,0LUX(With IR On), 60pcs F8 IR Lights, 70mdistance, 25mm manual Lens (Without Bracket)
AS-8486	Sony1/3 CCD,420TVL,0LUX(With IR On), 60pcs F8 IR Lights, 70mdistance, 25mm manual Lens (Without Bracket)
AS-8487	Sony1/3 CCD,480TVL,0LUX(With IR On), 60pcs F8 IR Lights, 70mdistance, 25mm manual Lens (Without Bracket)
AS-8488	Sony1/3 CCD,600TVL,0LUX(With IR On), OSD,60pcs F8 IR Lights, 70mdistance, 25mm manual Lens (Without Bracket)
AS-8489	Sony1/3 CCD,650TVL,0LUX(With IR On), OSD,60pcs F8 IR Lights, 70mdistance, 25mm manual Lens (Without Bracket)
AS-84810	Sony1/3 CCD,700TVL,0LUX(With IR On), OSD,60pcs F8 IR Lights, 70mdistance, 25mm manual Lens (Without Bracket)
