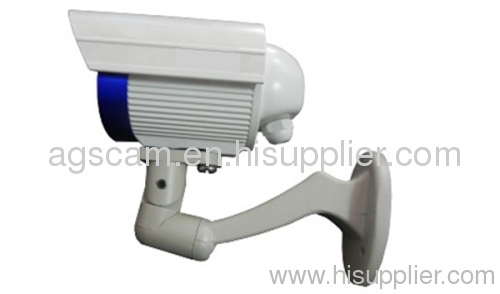

PAL/NTSC 25m IR distance CCD or CMOS Color Waterproof CCTV Camera with 12V DC Power Supply,841 AS-841 manufacturer from China Hongkong Angels Security Electric Co.,Ltd.

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: AS-841

Delivery Date: 7-30 days

TV system: PAL/NTSC

Minimum illumination: 0 lux (IR on)

Backlight compensation: auto

IR distance: 25 meters

Means of Transport: Ocean,Air

Sensor: 1/4"color CCD,1/3"color CCD...

Scanning system: 2:1 interlace

Day/night: auto

Infrared LED: 36pcs IR LED

PAL/NTSC 25m IR distance CCD or CMOS Color Waterproof CCTV Camera with 12V DC Power Supply

Image Sensor: Sharp or Sony1/4"color CCD, 1/3"color CCD, CMOS

TV system: PAL/NTSC

Scanning system: 2:1 interlace

Synchronize system: internal

Minimum illumination: 0 lux (IR on)

S/N ratio: ≥48dB

Video output: 1.0Vp-p, 75II composite, BNC x 1

Gamma ratio: ≥0.45

Focal length: 6mm fixed lens

Viewing angle: Vertical: 92°/53°

Zoom ratio: fix

Control mode: fix

Day/night: auto

Backlight compensation: auto

White balance: auto

Gamma characteristic: ≥0.15

Electronic shutter:

PAL: 1/50 to 1/100,000 seconds

NTSC: 1/60 to 1/100,000 seconds

Infrared LED: Ø5, 36pcs IR LED

IR distance: 25 meters

Infrared spectrum: 850nm

Operating temperature: -10 to +50°C

Storage temperature: -40 to +60°C

Vandal-proof casing: IP66

Input voltage/current: DC 12V/500mA

Adapter requirement: DC 12V/1000mA

Serial products:

AS-8413	Sharp 1/4 CCD, 420TVL, 0LUX(With IR On), 36pcs F5 IR Lights, 25mdistance, 6mm, 3.6mm Lens (Without Bracket)
AS-8414	CMOS, 420TVL, 0LUX(With IROn) , 36pcs F5 IR Lights, 25m distance, 6mm,3.6mm Lens (Without Bracket)
AS-8415	Sony 1/4 CCD, 420TVL, 0LUX(WithIR On) , 36pcs F5 IR Lights, 25m distance, 6mm 3.6mm Lens (Without Bracket)
AS-8416	Sony 1/3 CCD, 420TVL, 0LUX(WithIR On) , 36pcs F5 IR Lights, 25m distance, 6mm 3.6mm Lens (Without Bracket)
