High resolution PAL/NTSC 25m IR distance CCD or CMOS waterproof CCTV Camera with OSD AS-842 manufacturer from China Hongkong Angels Security Electric Co.,Ltd.

Place of Origin:

Guangdong, China (Mainland)

Product Detail

Model No.: AS-842

Delivery Date: 7 days

TV system: PAL/NTSC

Minimum illumination: 0 lux (IR on)

Backlight compensation: auto

IR distance: 25 meters

Means of Transport: Ocean

Sensor: 1/4"color CCD,1/3"color CCD...

Scanning system: 2:1 interlace

Day/night: auto

Infrared LED: 36pcs IR LED

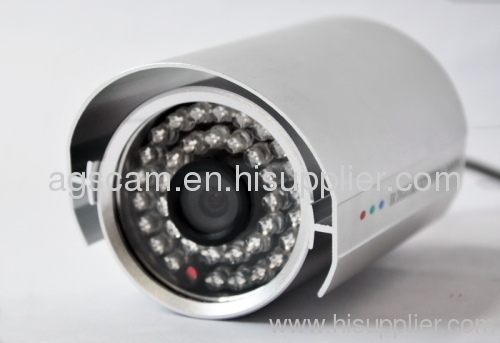

High resolution PAL/NTSC 25m IR distance CCD or CMOS waterproof CCTV Camera with OSD

Image Sensor: Sharp or Sony 1/4"color CCD,1/3"color CCD, CMOS

TV system: PAL/NTSC

Scanning system: 2:1 interlace

Synchronize system: internal

Minimum illumination: 0 lux (IR on)

S/N ratio: ≥48dB

Video output: 1.0Vp-p, 75II composite, BNC x 1

Gamma ratio: ≥0.45

Focal length: 6mm fixed lens

Viewing angle: Vertical: 92°/53°

Zoom ratio: fix

Control mode: fix

Day/night: auto

Backlight compensation: auto

White balance: auto

Gamma characteristic: ≥0.15

Electronic shutter:

PAL: 1/50 to 1/100,000 seconds

NTSC: 1/60 to 1/100,000 seconds

Infrared LED: Ø5, 36pcs IR LED

IR distance: 25 meters

Infrared spectrum: 850nm

Operating temperature: -10 to +50°C

Storage temperature: -40 to +60°C

Vandal-proof casing: IP66

Serial products:

AS-8423	Sharp 1/4 CCD, 420TVL,0LUX(With IR On), 36pcs F5 IR Lights, 25mdistance, 6mm 3.6mmLens (Without Bracket)
AS-8424	CMOS, 420TVL,0LUX(With IR On), 36pcs F5 IR Lights, 25m distance, 6mm3.6mm Lens (Without Bracket)
AS-8425	Sony 1/4 CCD,420TVL,0LUX(With IR On), 36pcs F5 IR Lights, 25mdistance, 6mm 3.6mm Lens (Without Bracket)
AS-8426	Sony 1/3 CCD,4420TVL,0LUX(With IR On), 36pcs F5 IR Lights, 25mdistance, 6mm 3.6mmLens (Without Bracket)
AS-8427	Sony 1/3 CCD,480TVL,0LUX(With IR On), 36pcs F5 IR Lights, 25mdistance, 6mm 3.6mm Lens (Without Bracket)
AS-8428	Sony 1/3 CCD,600TVL,0LUX(With IR On),OSD, 36pcs F5 IR Lights, 25mdistance, 6mm 3.6mmLens (Without Bracket)
AS-8429	Sony 1/3 CCD,650TVL,0LUX(With IR On),OSD, 36pcs F5 IR Lights, 25mdistance, 6mm 3.6mmLens (Without Bracket)
AS-84210	Sony 1/3 CCD,700TVL,0LUX(With IR On),OSD, 36pcs F5 IR Lights, 25mdistance, 6mm 3.6mm Lens (Without Bracket)
