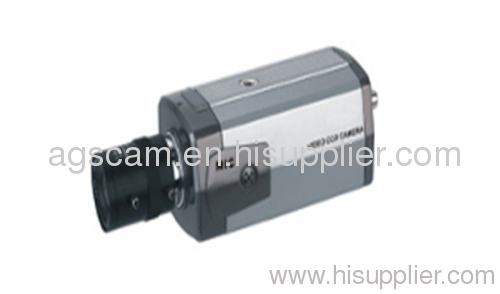

High Sensitivity CCD or CMOS Color box Camera with OSD menu and different Resolution,H821 AS-H821 manufacturer from China Hongkong Angels Security Electric Co.,Ltd.

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: AS-H821

Delivery Date: 7-30 days

Scanning system: PAL/NTSC

White balance: AWB On/Off switchable

Lens: C/CS

Means of Transport: Ocean,Air

CCD type: Sony Sharp CCD or CMOS

AGC: AGC On/Off switchable

Backlight compensation: On/Off switchable

Box Camera Color CCD with low Illumination CCTV Standard Camera, 420TVL/480TVL

Specifications:

Image sensor: Sony Sharp CCD or CMOS sensor

Sync system: internal/line lock

DNR built-in DNR (digital noise reduction) S/N up 4.5dB

Switchable:

Sense up

H: mirror function

V: mirror function

BLC function

Zoom function

Enhance

Color bar

Auto iris AES/DC-iris

Electronic shutter:

AES: 1/60 to 1/120,000sec, 1/50 to 1/120,000sec

Fix: 1/60(50), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, and 1/10,000sec

Video output: 1.0Vp-p composite video at 75 ohms with monitor output

Gamma correction: 0.45/1.0

Power supply: 12V DC

AS-8213	Sharp 1/4 CCD, 420TVL,1.0Lux/F1.2,Current 50MA, Without Lens
AS-8214	CMOS, 420TVL,1.0Lux/F1.2,Current 50MA, Without Lens
AS-8215	Sony1/4 CCD,420TVL,0.5Lux/F1.2,Current 60MA, Without Lens
AS-8216	Sony1/3 CCD,420TVL,0.2Lux/F1.2,Current 80MA, Without Lens
AS-8217	Sony1/3 CCD,480TVL,0.2Lux/F1.2,Current 70MA, Without Lens
AS-8218	Sony1/3 CCD,600TVL,OSD,0.2Lux/F1.2,Current 100MA, Without Lens
AS-8219	Sony1/3 CCD,650TVL,OSD,0.2Lux/F1.2,Current 100MA, Without Lens
AS-82110	Sony1/3 CCD,700TVL,OSD,0.2Lux/F1.2,Current 100MA, Without Lens
